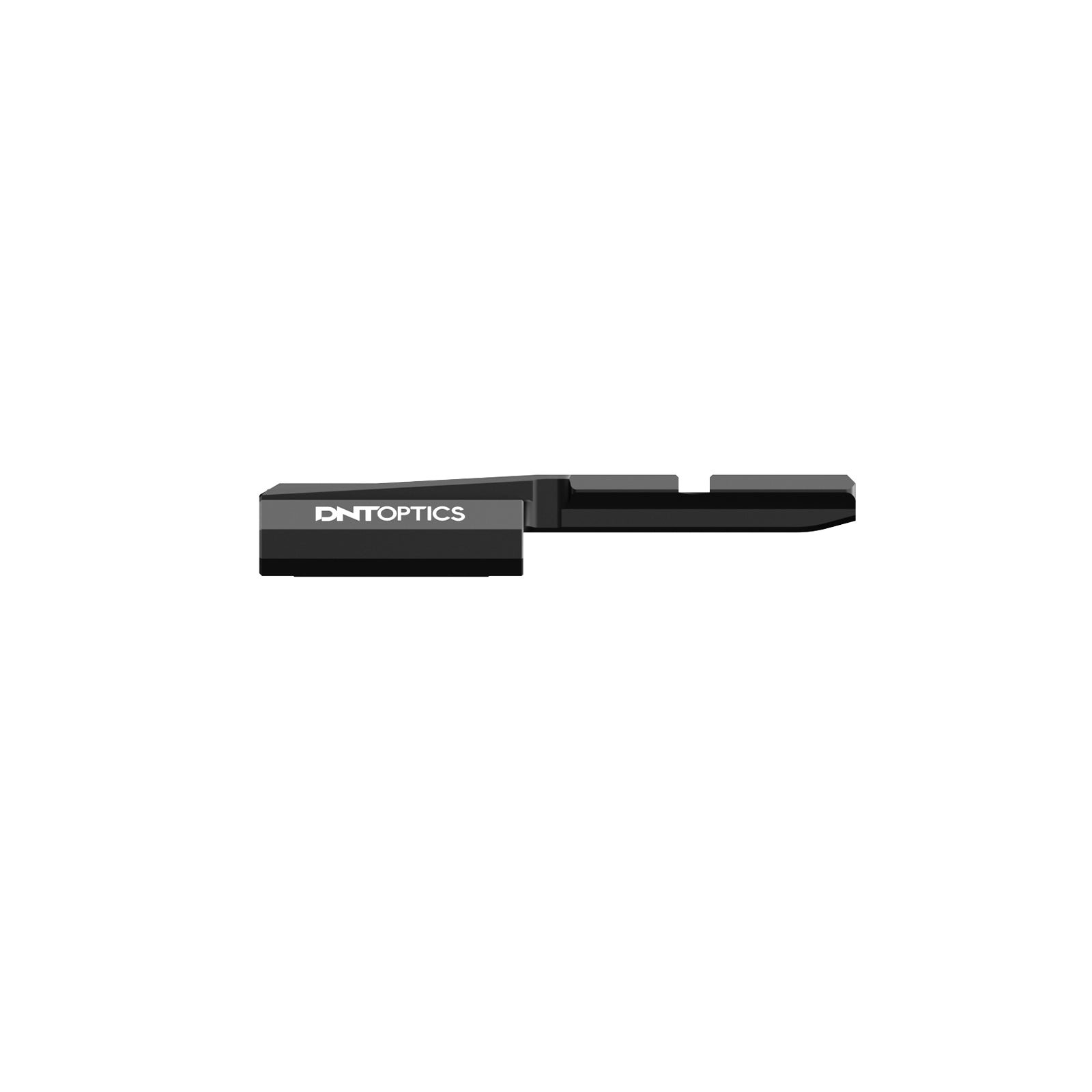

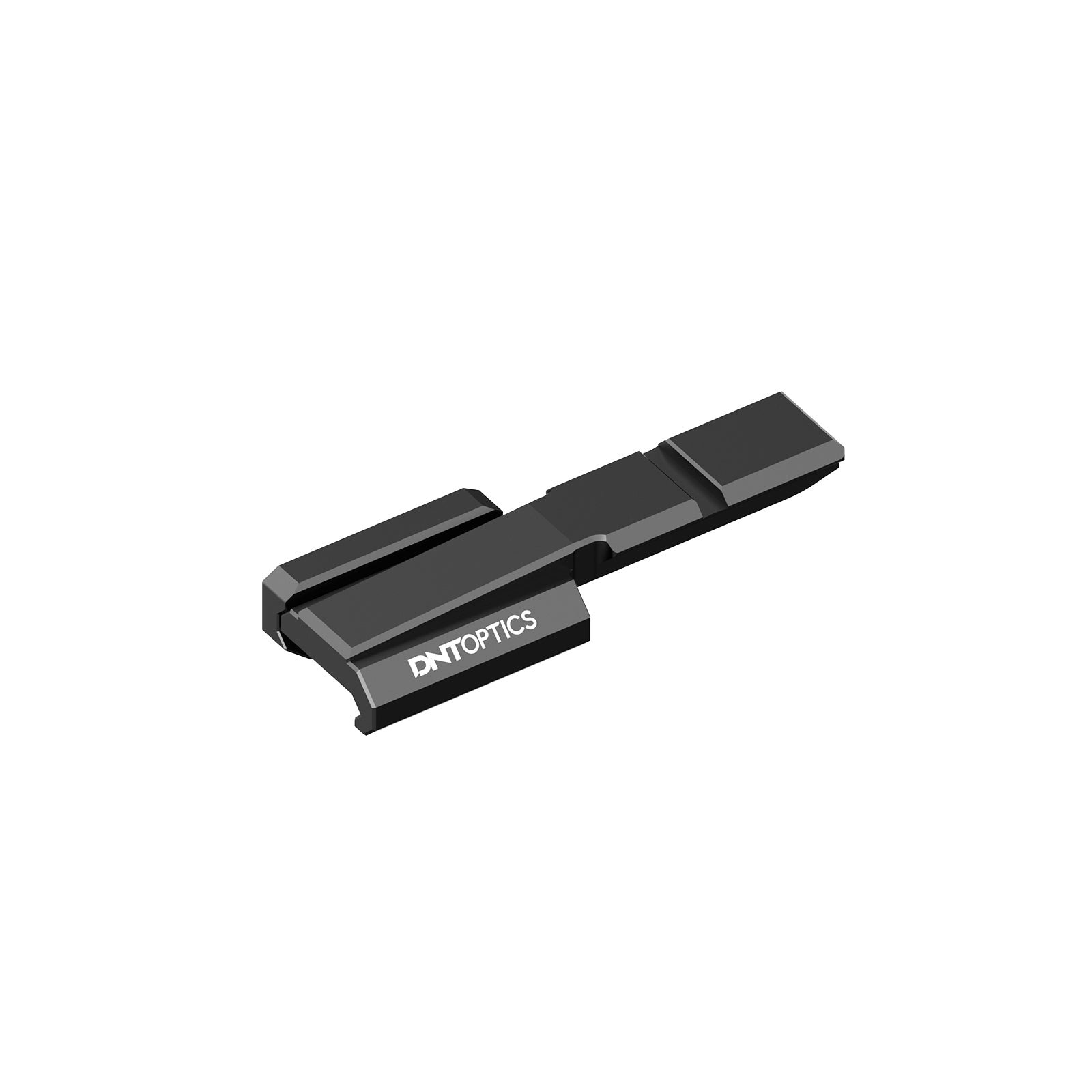

RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150

RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150
RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150
$45.99
$65.99
or 4 payments of $11.50 with Sezzle ⓘ
Note: RS43 functions only when paired with QDS150 or QDM150.
2-3 Weeks Lead Time
Subtotal: $45.99
Decrease quantity for RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150
1
Increase quantity for RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150
Add to cart

More payment options
Add to cart
RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150
$65.99 $45.99
Description
Specifications
Reviews
-RS43 SPECIFICATIONS-
Typical Use Case
Rising Scope Height over Rail to 1.93”
Designed For
QDS150 / QDM150
Compatible Series
QDS150 / QDM150
Interface (Scope Side)
Single Picatinny Slot
Interface (Rail Side)
Picatinny Rail
Material
6063 Aircraft-grade Aluminum Alloy
Color / Surface Treatment
Matte Black / Hard-Anodization
Dimensions (L × W × H)
101.5 mm × 35.0 mm ×17.3 mm / 4.00 in × 1.38 in × 0.68 in
Weight
63.8 g / 2.25 oz
Quick Detach Mechanism
N/A
Zero Maintenance Ability
≤0.25 mil
Return-to-Zero Accuracy
≤0.1 mil
Recoil Rating
800 Gs / .50 BMG
Operating Temperature
−20 to 50°C / −4 to 122°F
Screw Specifications
Head Shape [Socket] Diameter × Length × Head Diameter (mm)
Pan-Head [Torxplus 25] M5×20×9.25
Side Plate Screw Torque
30 in-lbs
Base Height Over Rail
Measured from top of the rail to the top of the riser
0.43 in (± 0.05 in)
Scope Height Over Rail
Measured from top of the rail to the centerline of the scope
1.93 in (± 0.1 in)
Measured with ZULUS V2 and QDS150
Horizontal Offset
Measured from the center of the bottom positioning block to the center of the top Picatinny slot
2.02 in (± 0.05 in)
Note
DNT digital scopes have a similar height from base to optic centerline across models and series (approx. 1 inch).

RS43 0.43″ Cantilever Mount Riser Compatible with QDS150 and QDM150

Raises Optic Centerline: Paired with a QDS150 or QDM150 mount, the RS43 raises your optic by 0.43″, making your optics centerline 1.93″.

Durable & Reliable: Tested to remain zeroed within 0.25 mil after 1,000 impact cycles.

Cantilever Design: Offers 2″ horizontal offset for flexible mounting options.

Recommended Scenarios:

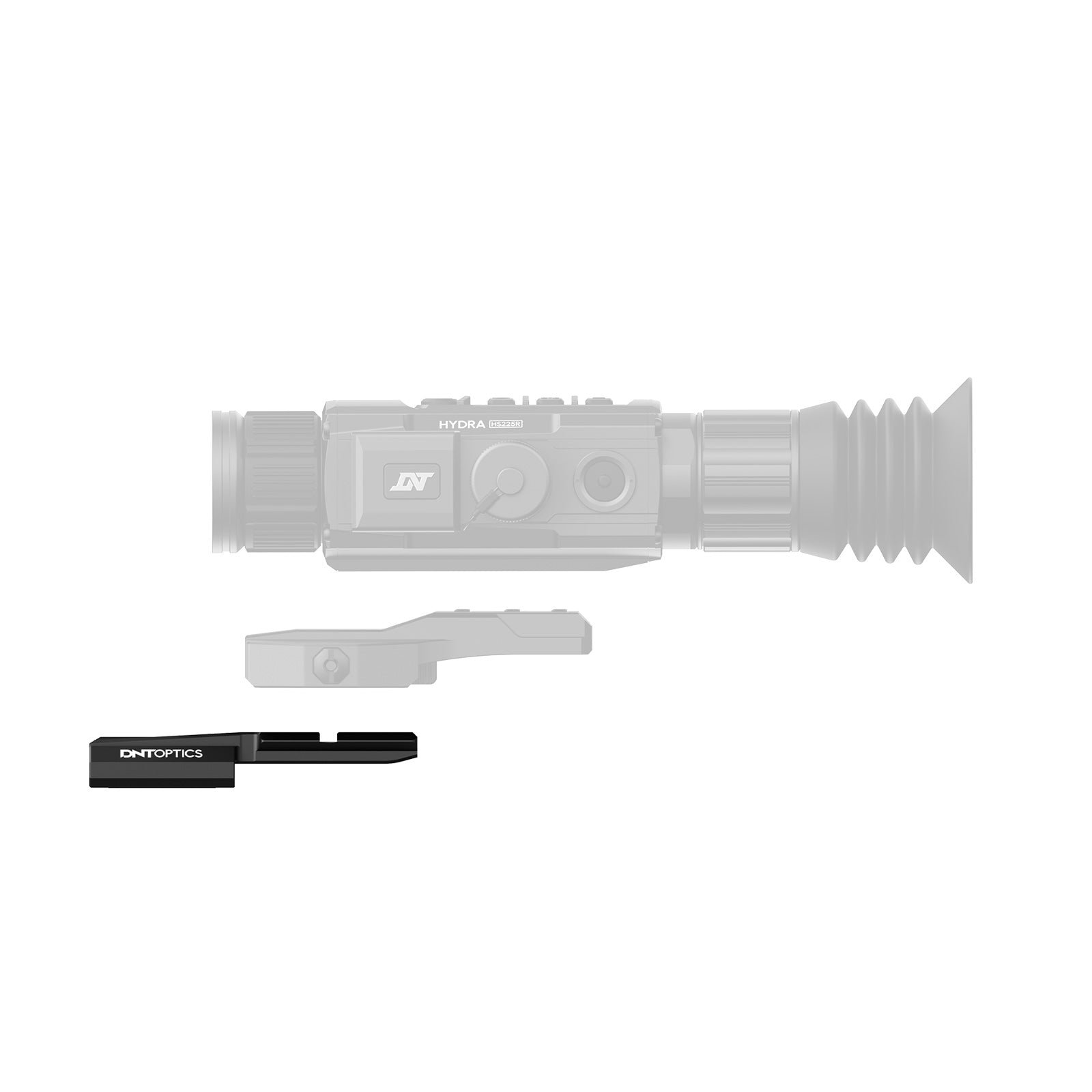

Add RS43 to the HYDRA + QDM150 combo to use it as a clip-on with a 1.93″ LPVO;

Add RS43 to the NVMD + QDS150 combo to magnify a red dot mounted at 1.93″;

Use the RS43 + QDS150 combo to raise your digital scope for a higher mounting position.
