Features

• Excellent thermal sensor 640×480 px @ 12 μm

• Thermal sensitivity <20 mK sNETD

• Fast aperture lens F35/1.0 • Detection range up to 1950+ yds

• Image Stabilization

• Built-in photo/video recorder

• Up to 12 hours of battery life

• Single handed operation • 8 Color palettes • IP67 Fully waterproof, shockproof and dust proof

• Wi-Fi connectivity with 2.5/5 GHZ waveband support

• Stream Vision 2 App supported

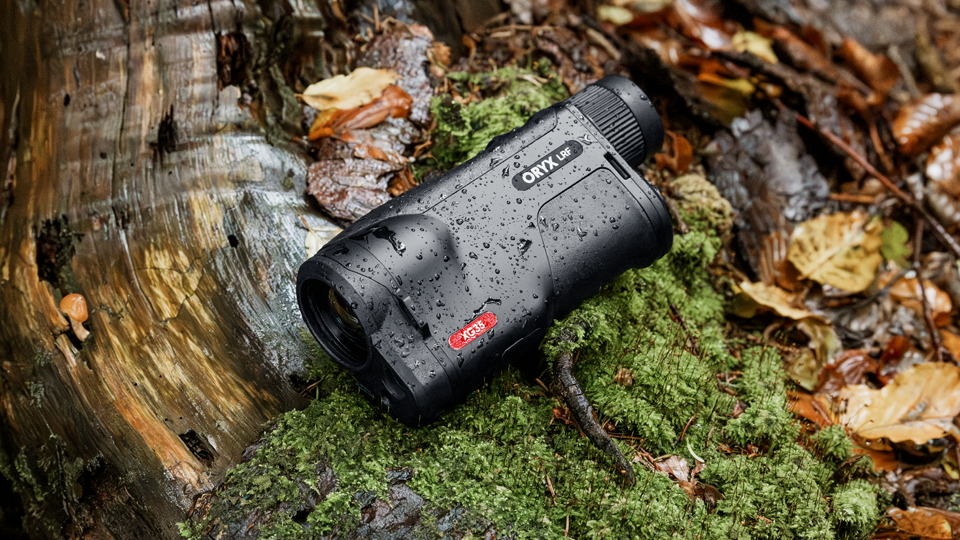

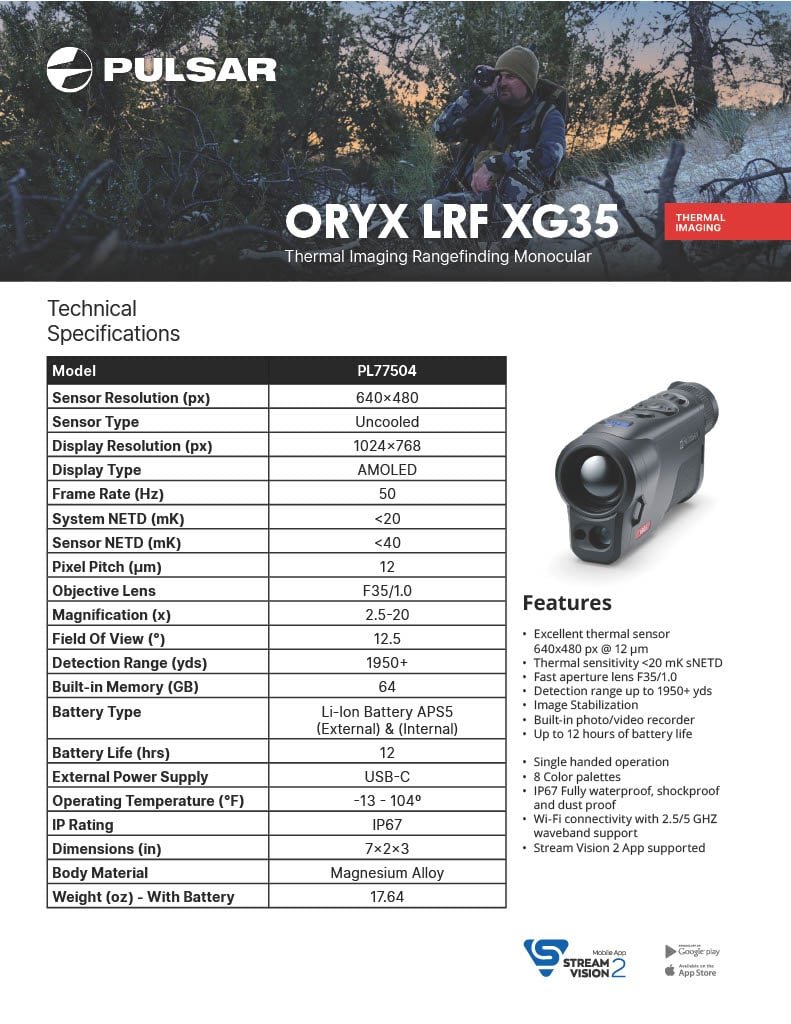

Thermal Imaging Rangefinding Monocular ORYX LRF XG35

Model PL77504

Sensor Resolution (px) 640×480

Sensor Type Uncooled

Display Resolution (px) 1024×768

Display Type AMOLED

Frame Rate (Hz) 50

System NETD (mK) <20

Sensor NETD (mK) <40

Pixel Pitch (µm) 12

Objective Lens F35/1.0

Magnification (x) 2.5-20

Field Of View (°) 12.5

Detection Range (yds) 1950+

Built-in Memory (GB) 64

Battery Type Li-Ion Battery АPS5 (External) & (Internal)

Battery Life (hrs) 12 External

Power Supply USB-C Operating

Temperature (°F) -13 – 104º

IP Rating IP67 Dimensions (in) 7x2x3

Body Material Magnesium Alloy Weight (oz) – With Battery 17.64
