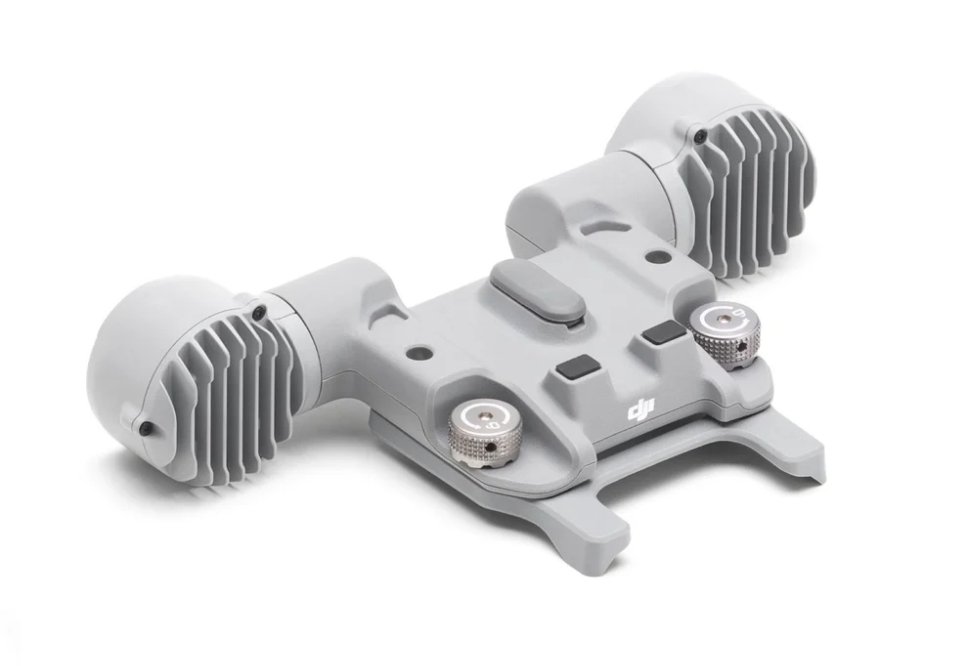

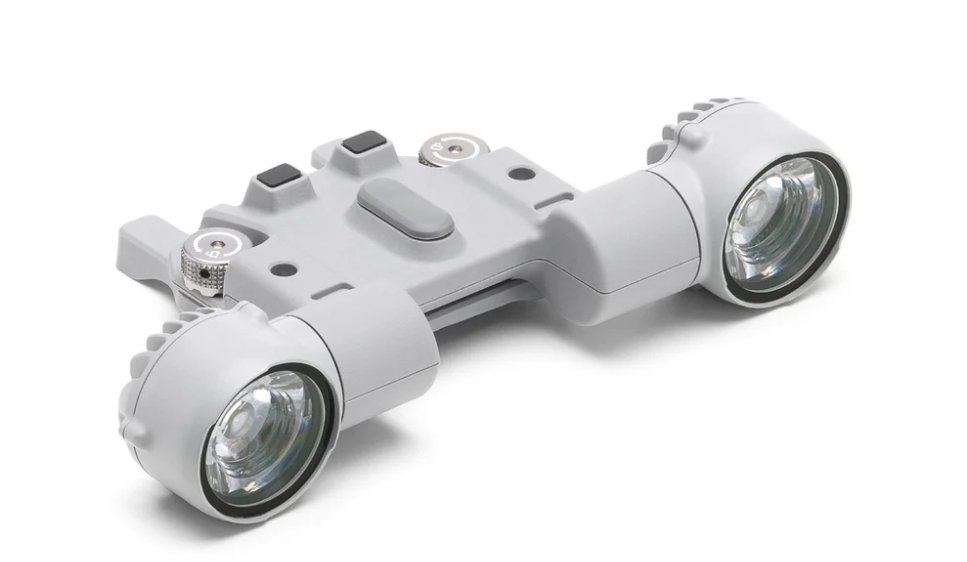

DJI AL1 Spotlight for Matrice 4 Series

DJI AL1 Spotlight for Matrice 4 Series

Illuminate Every Mission with the DJI AL1 Spotlight
The DJI AL1 Spotlight is the ultimate lighting solution for DJI Matrice 4 Series drones, designed to bring unmatched clarity and precision to your operations. With a range of up to 100 meters and two modes—always-on and strobe—it provides exceptional illumination for diverse scenarios. Its intelligent integration with the gimbal ensures seamless alignment with the camera’s view, while the wide-field-of-view mode lights up expansive areas for superior situational awareness. Lightweight, durable, and versatile, the AL1 Spotlight is an indispensable tool for professionals demanding reliability in every mission.

Key Features and Benefits
Powerful Illumination: Provides a range of up to 100 meters with illuminance of 4.3±0.2 lux, ensuring clarity even in low-light conditions.
Dual Lighting Modes: Switch between always-on and strobe modes to suit your operational needs.
Intelligent Gimbal Integration: Links with the gimbal to follow the camera’s movements, keeping the spotlight perfectly aligned.
Wide-Field-of-View Lighting: Covers up to 2,200 square meters at 100 meters, ideal for large-area illumination.
Lightweight and Compact Design: Weighing only 99g (with bracket), it minimally impacts drone performance.
Safe and Reliable: Operates in temperatures from -4°F to 122°F and features secure, quick-release installation.
Applications and Use Cases
The DJI AL1 Spotlight is perfect for a range of professional applications:

Public Safety & Search and Rescue: Illuminate critical areas for emergency response and disaster relief.
Inspection and Maintenance: Light up complex infrastructure or hard-to-reach areas for detailed assessments.
Surveillance and Security: Enhance visibility during nighttime or low-visibility operations.
Agriculture and Wildlife Monitoring: Efficiently observe wide fields or wildlife habitats even in darkness.

Specifications
Weight: 99 g (including bracket)
Approx. Weight: 91 g (excluding bracket)
Dimensions: 95×164×30 mm (L×W×H, including bracket)
Dimensions: 79×164×28 mm (L×W×H, without bracket)
Max Power: 32 W
Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters
Effective Illumination Angle: 23° (10% relative illuminance)
Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode)
Effective Illumination Area: 2,200 square meters @ 100 meters (10% relative illuminance, Wide FOV Mode)
Modes: Always-on and strobe
Gimbal Mechanical Range (Tilt): -135° to 45°
Gimbal Controllable Range (Tilt): -90° to 35°
Max Control Speed (Tilt): 120°/s
Gimbal Alignment Accuracy: ±0.1°
Operating Temperature: -4° to 122° F (-20° to 50° C)
Mounting Method: Quick-release hand-tightened screws
In The Box
1x Spotlight
2x Spare Screw
1x Hex Key
