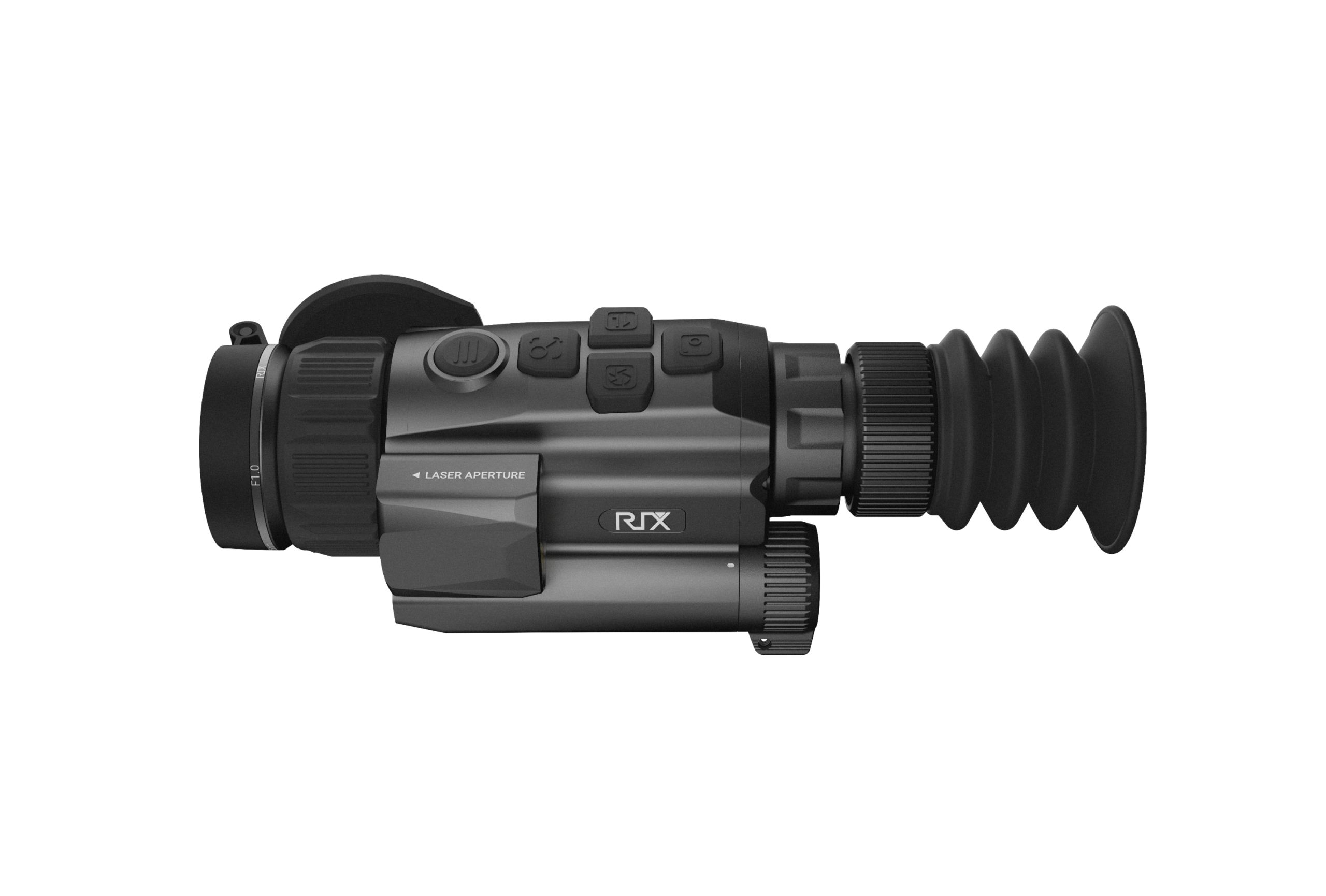

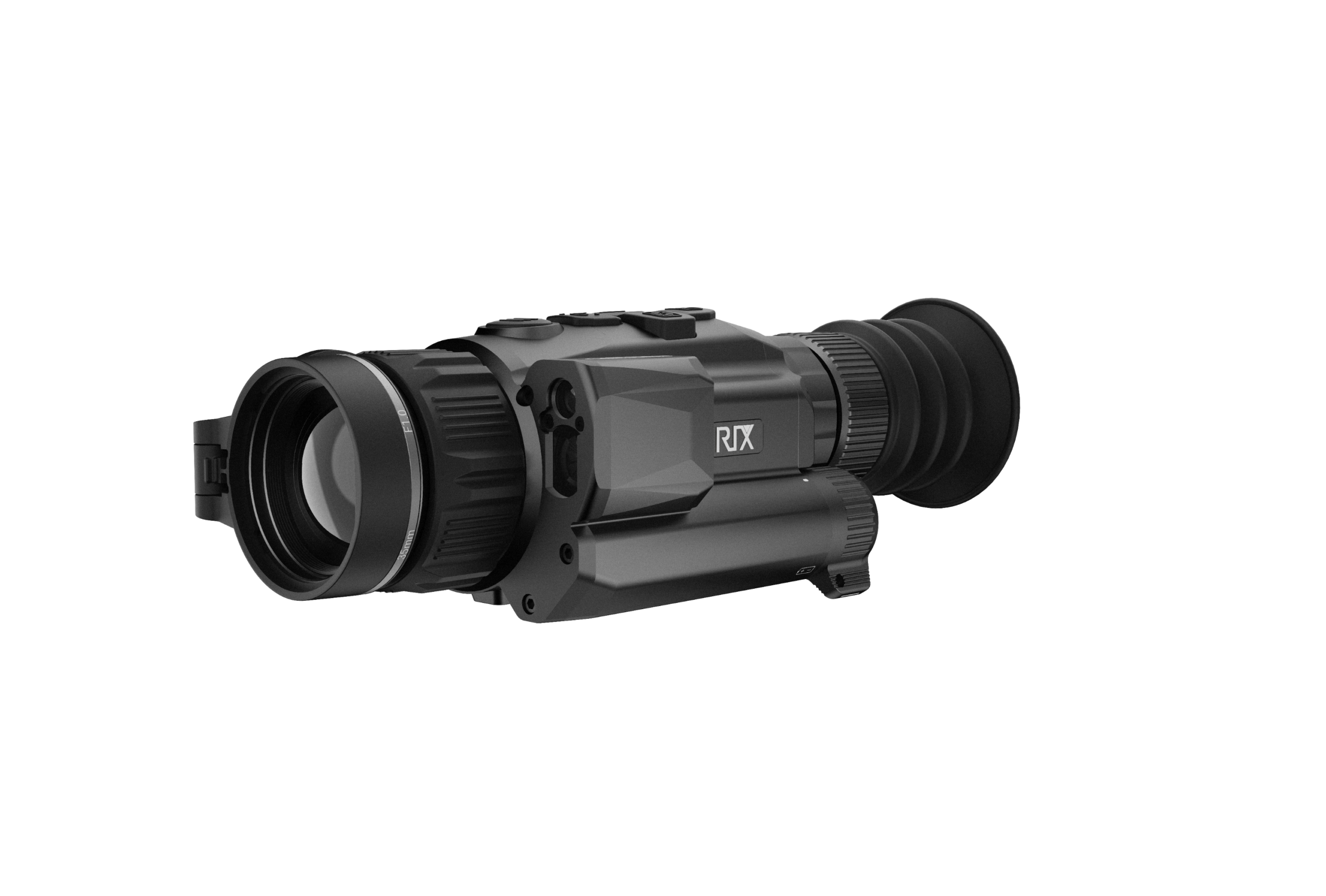

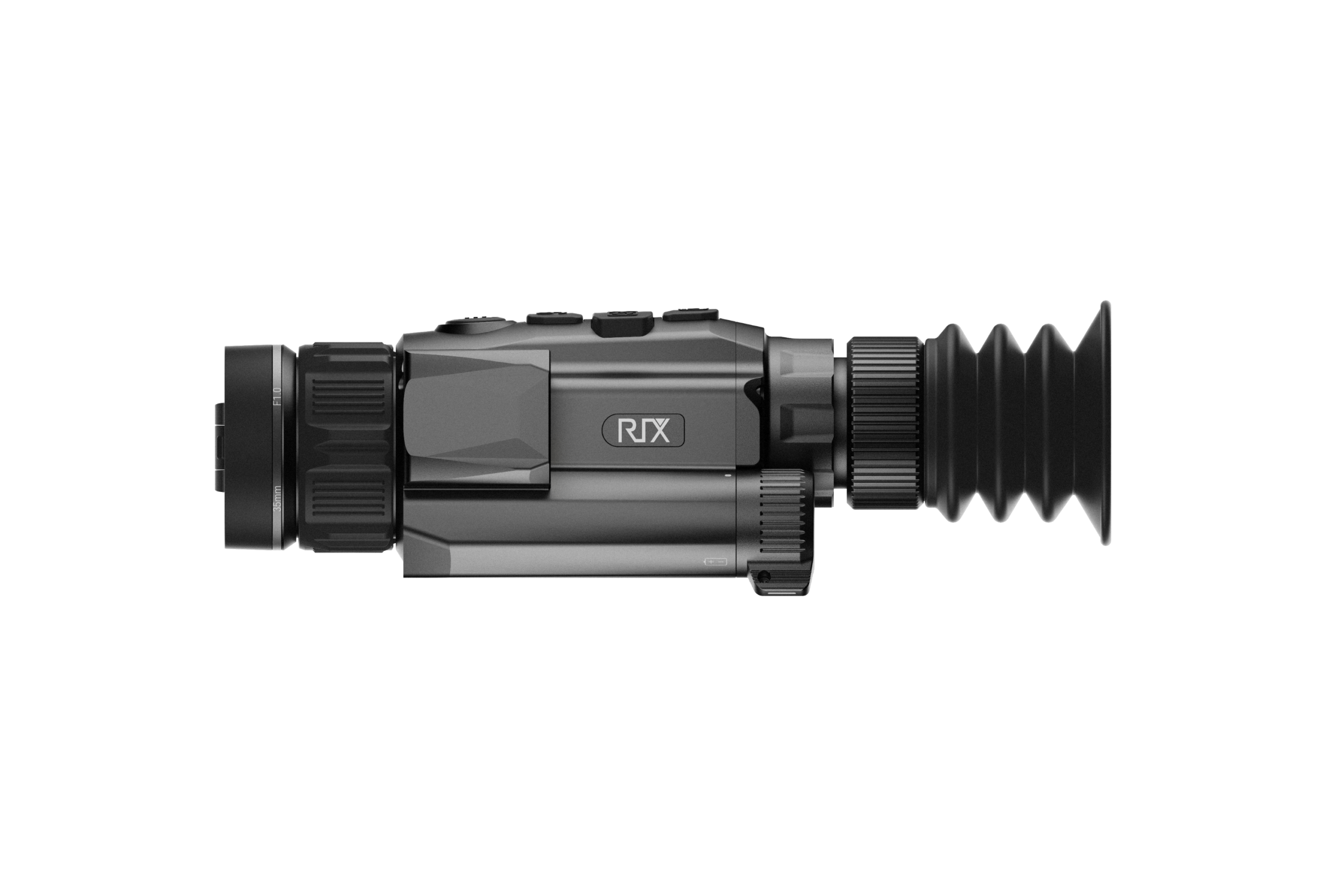

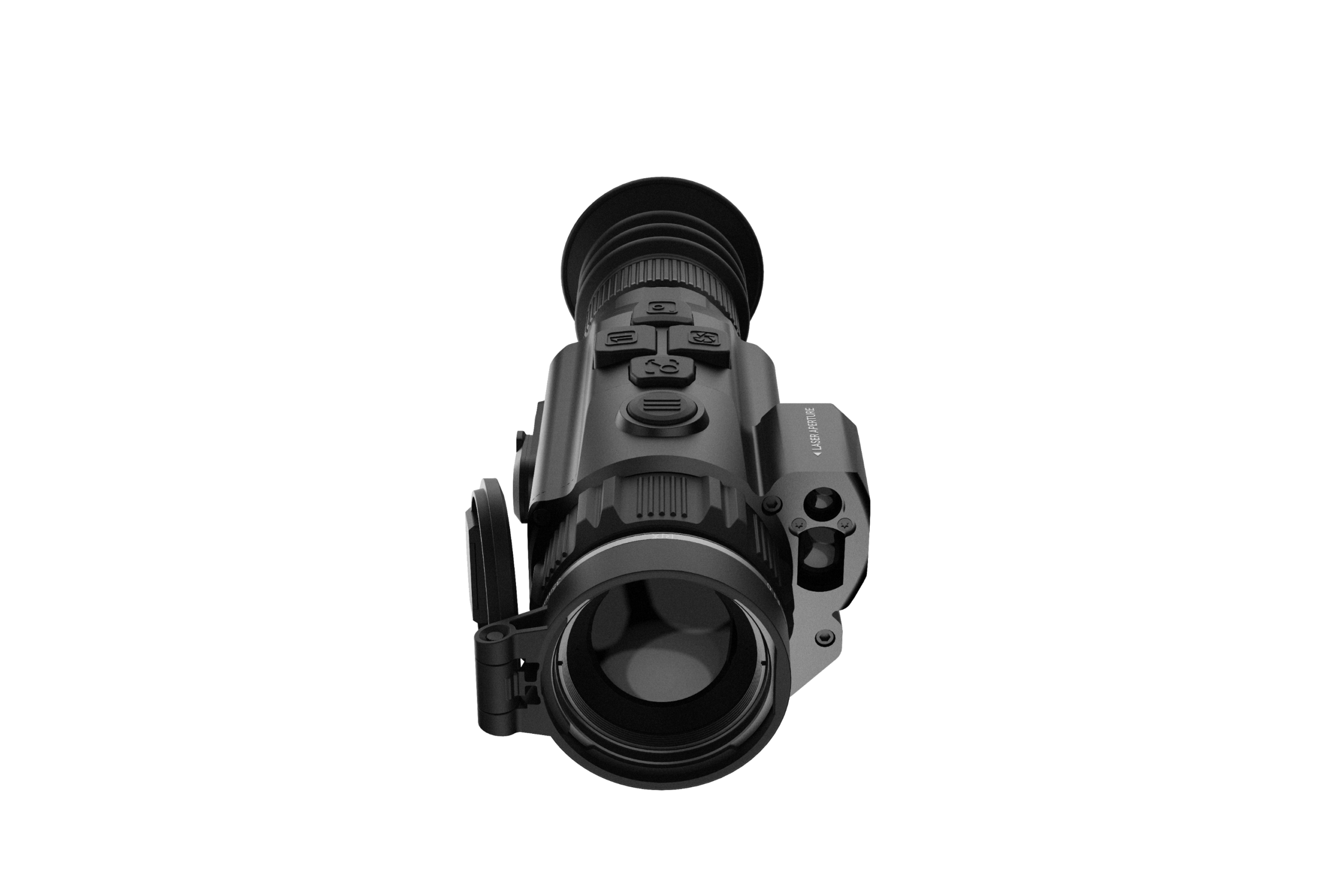

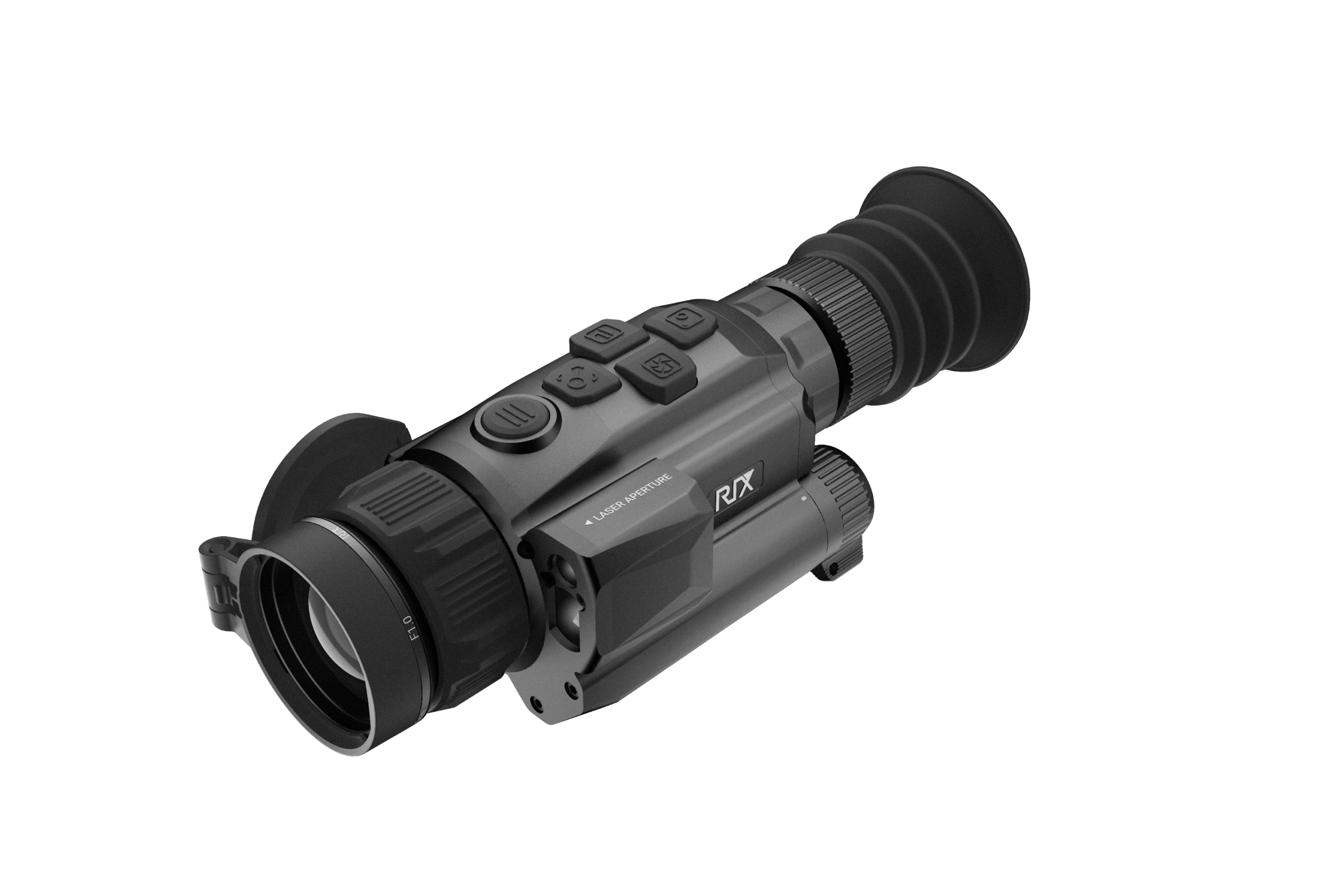

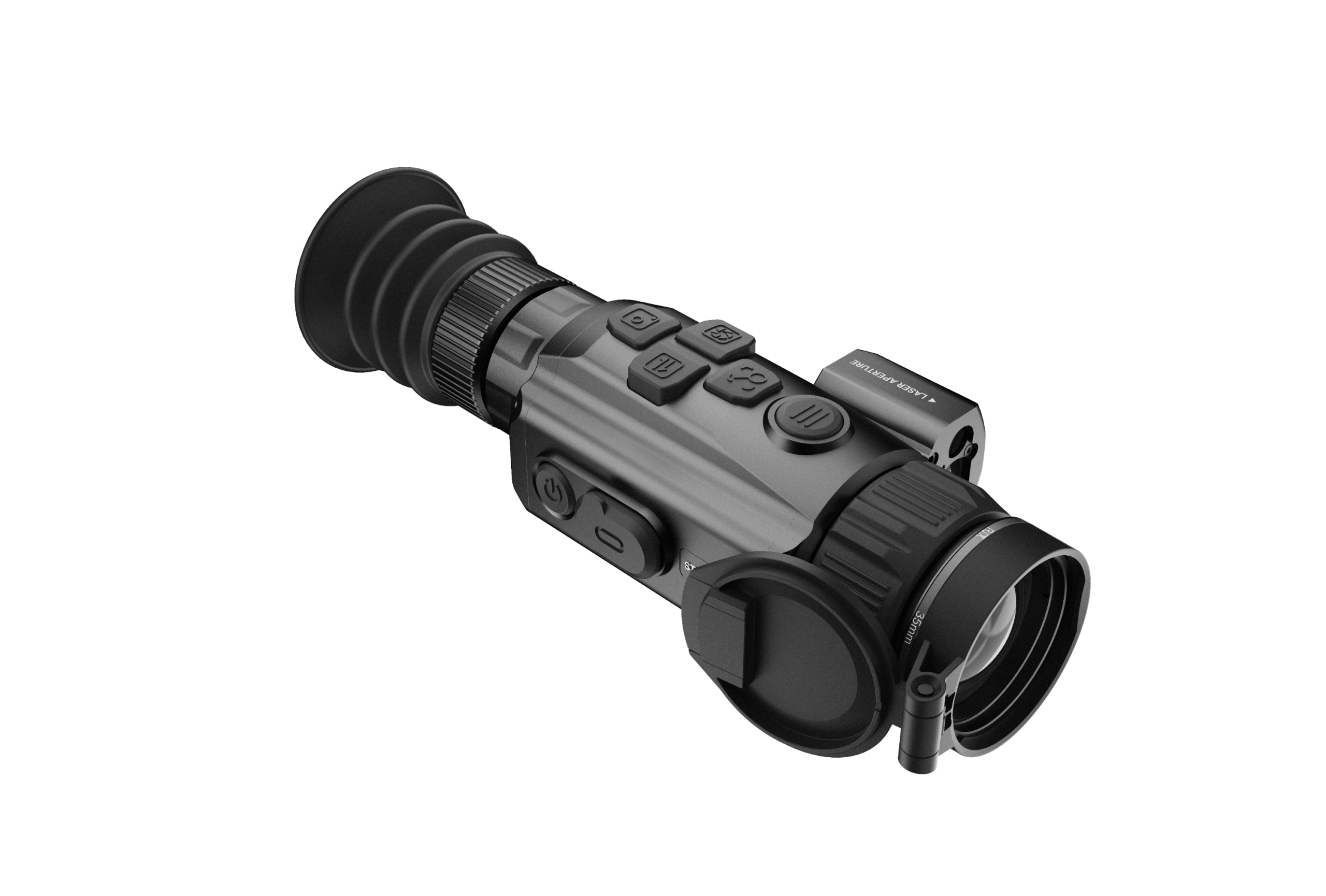

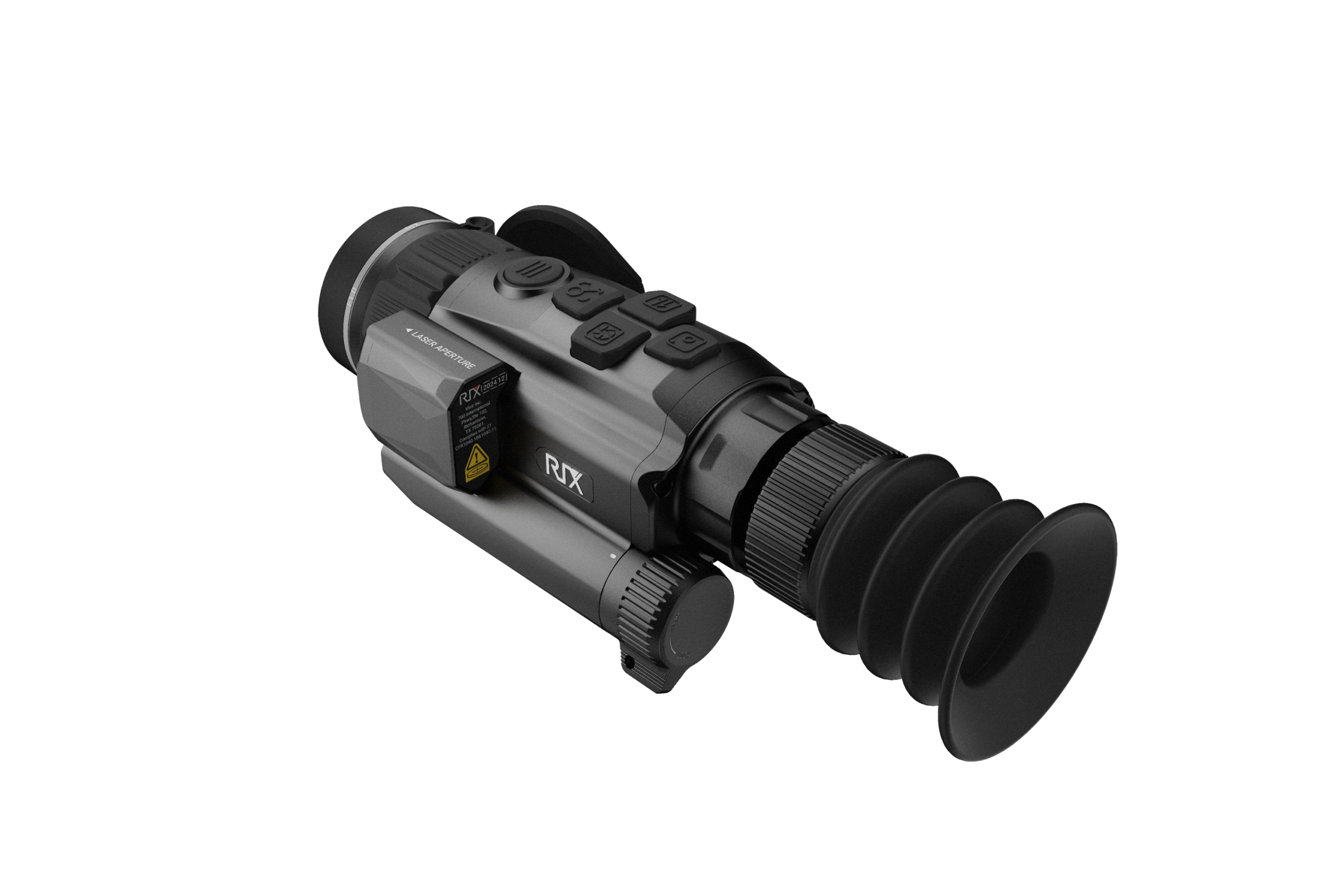

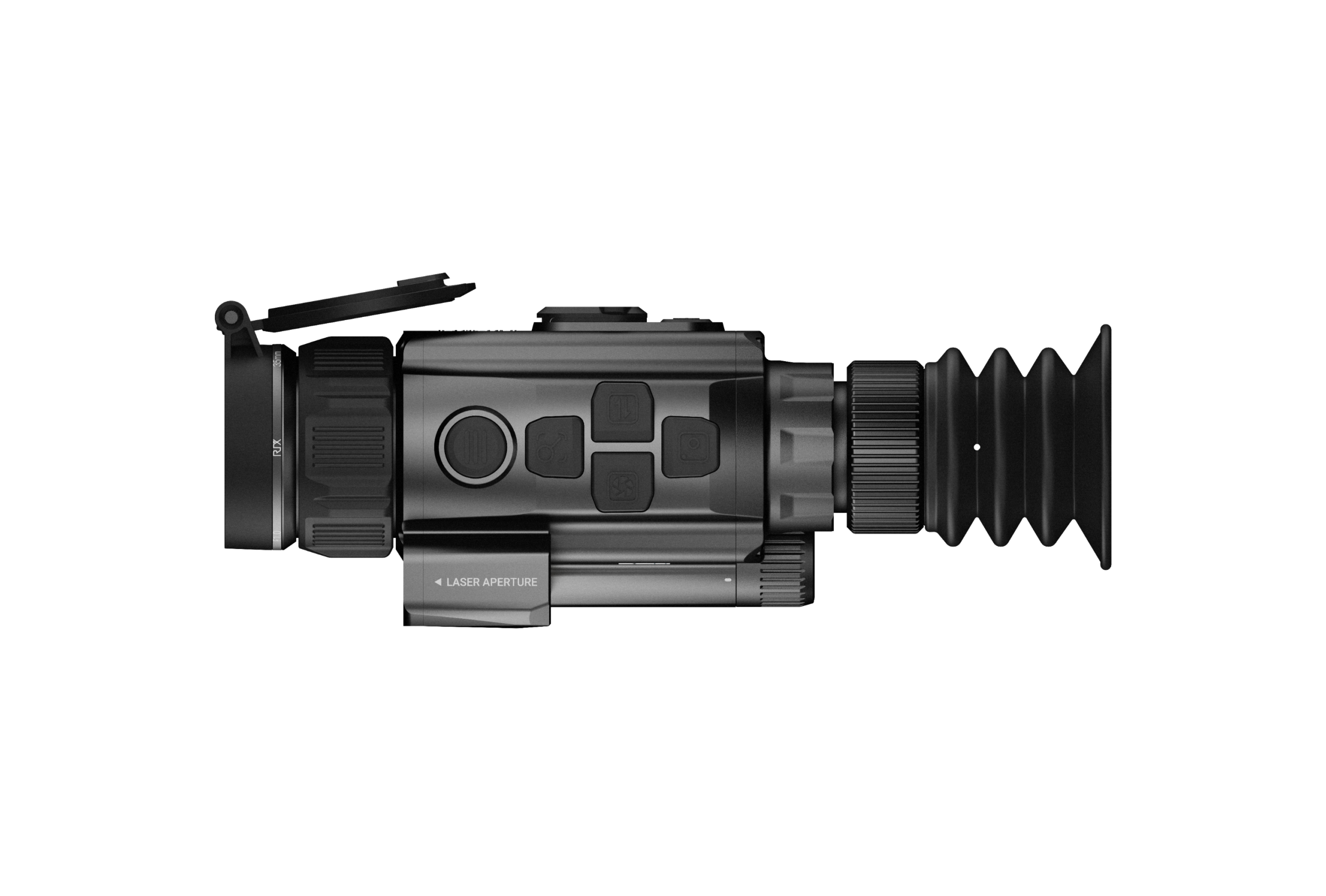

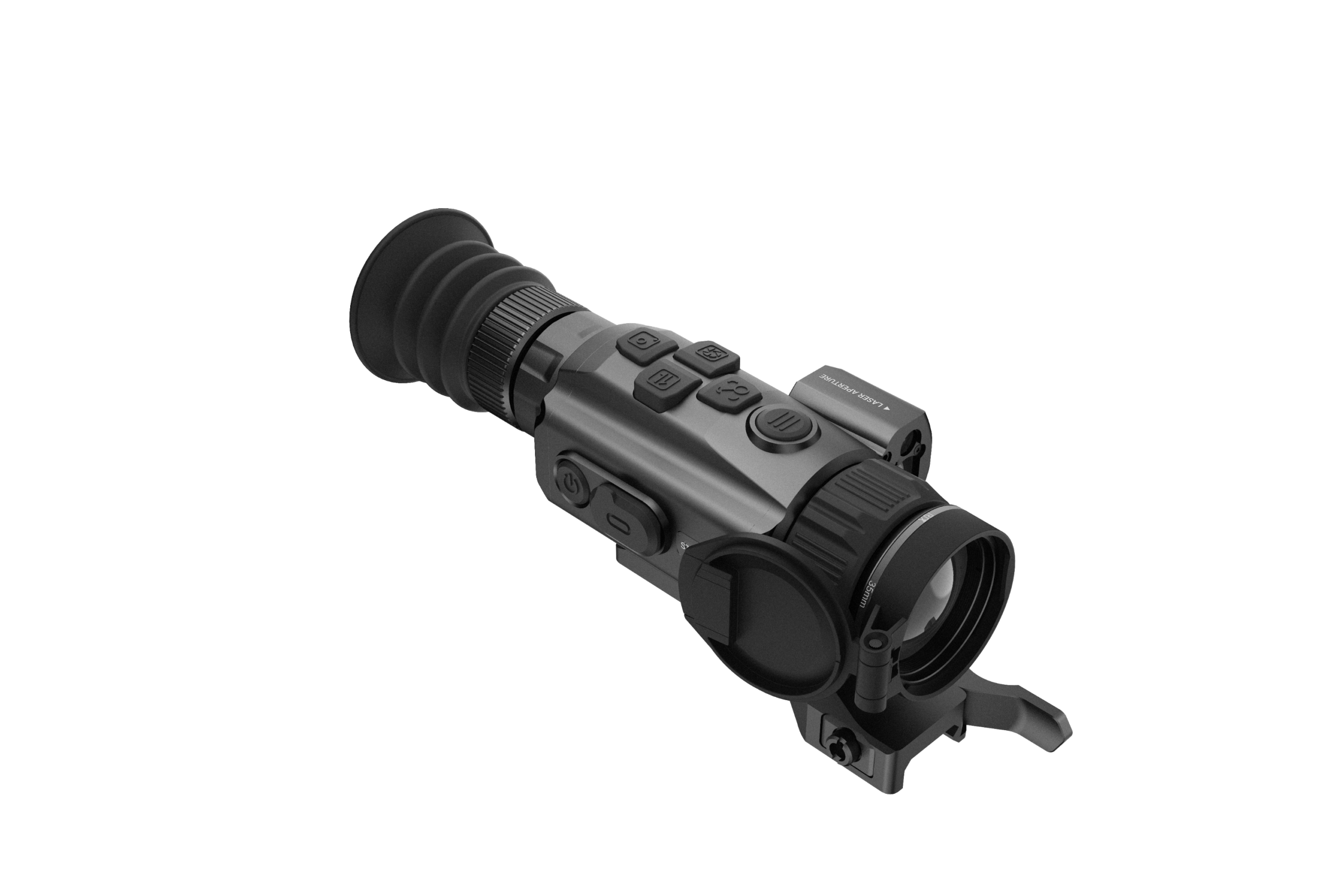

Rix Storm S3r v2 – 384 resolution – 3.5x to 14x magnification

The RIX Optics Storm S3R V2 takes one of RIX’s most popular compact thermal scopes and upgrades nearly every area that matters in the field. It retains the proven 384×288 resolution, 35mm F/1.0 objective lens and useful 3.5× base magnification of the original Storm S3R, but adds a new thermal detector, improved image processing, a larger high-resolution display and a much longer-range laser rangefinder.

RIX also redesigned the eyepiece, mount and rangefinder placement to make the Storm S3R V2 more comfortable behind the rifle and more compatible with both AR-platform and bolt-action rifles.

For coyote hunters working open fields, hog hunters who need accurate ranging and anyone wanting a lightweight thermal scope with built-in ballistics, the S3R V2 offers an impressive amount of capability without moving into 640-resolution pricing.

What’s Included in the Box?

RIX Optics Storm S3R V2 thermal scope

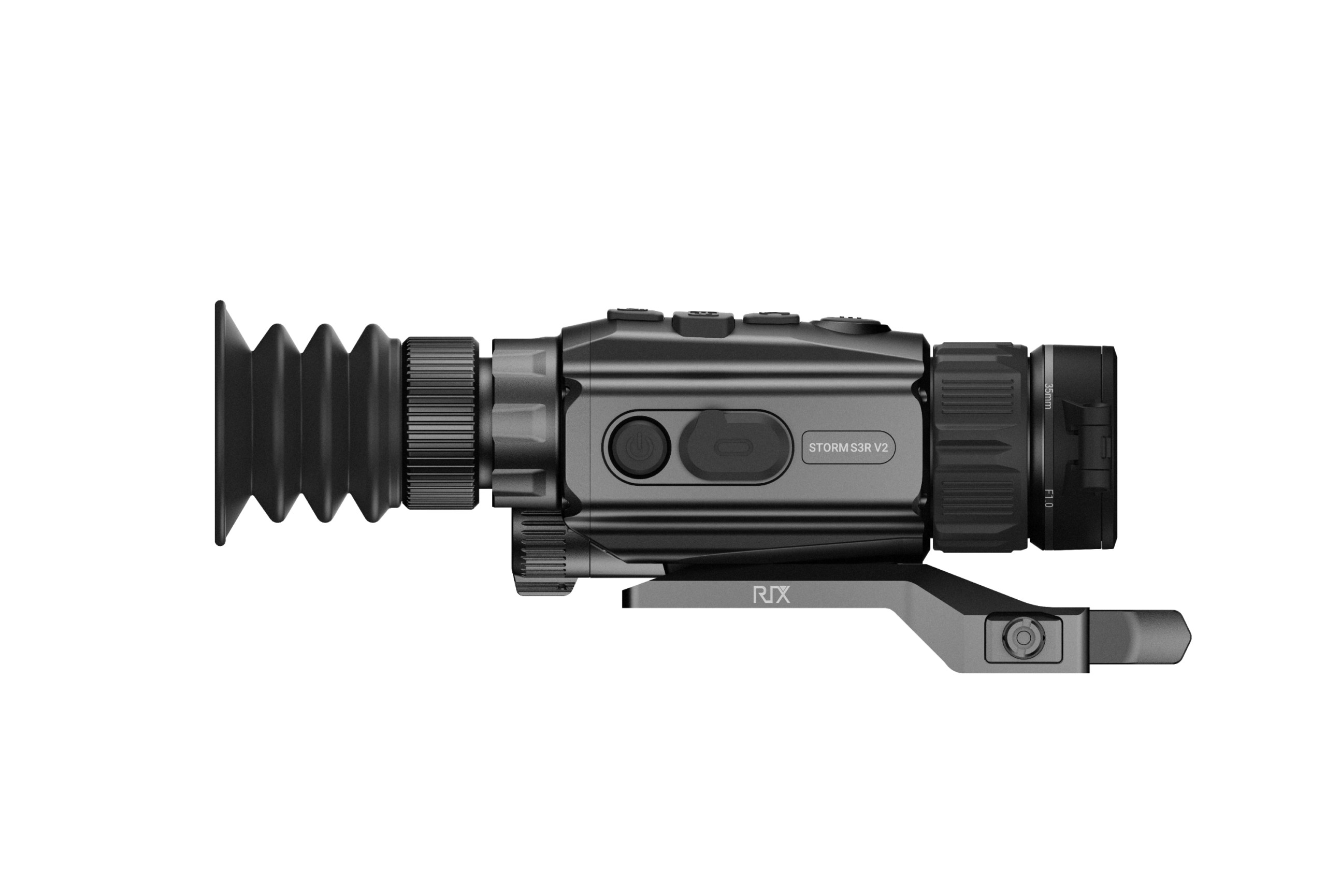

Quick-detach Picatinny mount
Two rechargeable 18650 batteries
Battery charger
Battery fireproof storage bag
Objective lens dust cover
Objective-focus throw lever
Ten thermal zeroing targets
USB Type-C cable
Lens cloth
Hex key

RIX Optics Storm S3R V2 Technical Specifications

Thermal Sensor Detector Type: VOx uncooled focal-plane array
Resolution: 384×288
Pixel Pitch: 12 μm
Thermal Sensitivity: NETD under 15 mK
Frame Rate: 50 Hz
Image Enhancement: RET
Optics
Objective Lens: 35mm F/1.0
Base Magnification: 3.5×
Digital Zoom: 1× to 4×
Total Magnification: 3.5× to 14×
Field of View: 7.5° × 4.6°
Field of View at 100 Yards: 13.2 × 8.1 yards
Detection Range: 1,969 yards
Eye Relief: 52mm
Diopter Adjustment: -5D to +5D
Display
Display Type: AMOLED
Display Size: 0.49 inch
Display Resolution: 1920×1080
Laser Rangefinder and Ballistics
Maximum Measurement Range: 2,187 yards
Measurement Accuracy: ±1.09 yards
Ballistic Calculator: Yes
Zeroing Profiles: Five
Pitch and Roll Display: Yes
Recording and Connectivity
Video and Photo Resolution: 1744×1072
Video Format: MP4
Photo Format: JPG
Internal Storage: 64 GB
Recoil-Activated Video: Yes
Wi-Fi: Yes
Mobile App: RIX+
Physical Specifications
Dimensions: 6.4 × 2.9 × 2.6 inches
Weight: 1.16 pounds without external battery
Protection Rating: IP67
Operating Temperature: -4°F to 122°F
Maximum Recoil Rating: 1,000 g / 6,000 J
Mounting Interface: Picatinny
Warranty: Five years
Power
Battery Type: Replaceable 18650
Rated Runtime: Approximately four hours at 72°F
External Power: 5V USB-C
