Description

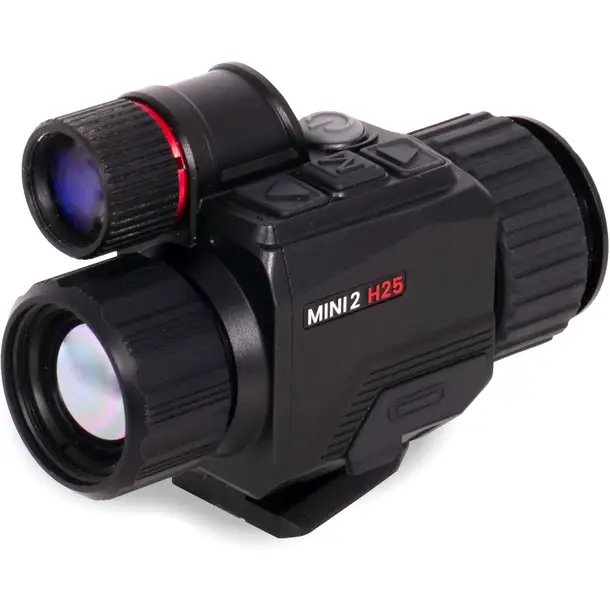

Nocpix MINI2 H25 Compact Thermal Imaging + Digital NV Monocular

Pack maximum thermal awareness and multi-spectral vision into a lightweight, hands-free platform with the Nocpix MINI2 H25 Thermal Helmet-Mounted Monocular. Engineered specifically for hunters, tactical operators, and night-vision drivers who require low-profile thermal optics without added bulk, the MINI2 H25 seamlessly combines thermal imaging, digital night vision, and thermal fusion overlay modes. This multi-spectral capability allows operators to transition effortlessly between driving, wide-area scanning, and stealthy stalking in total darkness.

At the heart of the MINI2 H25 is Nocpix’s advanced 640×512, 12µm thermal core featuring an industry-leading thermal sensitivity rating of NETD ≤15mK and a smooth 60Hz frame rate. Powered by the proprietary Reality+ (R+) AI image processing algorithm and a 25mm f/1.0 objective lens, it delivers crystal-clear thermal rendering up to a 1,420-yard detection range on its crisp 0.6-inch 1280×1024 AMOLED micro-display. Housed in a rugged IP67-rated aluminum chassis with a built-in dovetail mounting shoe, 32GB of internal storage, and USB-C power/data connectivity, the MINI2 H25 is an elite tool for helmet-mounted thermal operations.

Features
Ultra-Sensitive 640×512 12µm Sensor (≤15mK):
High-resolution thermal core with extreme thermal sensitivity (NETD ≤15mK) captures minute temperature differentials for detailed target identification in harsh conditions.

Multi-Spectral Thermal & Night Vision Fusion:
Combines thermal imaging, digital night vision, and thermal fusion overlay modes into a single optic, providing dynamic tactical flexibility from driving to tracking.

Reality+ AI Image Processing & 60Hz Refresh Rate:
Leverages Nocpix’s Reality+ AI image algorithm to sharpen edges and eliminate digital noise, while a 60Hz frame rate ensures fluid, latency-free motion for helmet-mounted use.

Dovetail Helmet Mount & Ultra-Compact Footprint:
Built with an integrated Dovetail shoe for direct helmet mount compatibility, weighing just 8.47 ounces with a compact 4.00″ x 1.72″ x 2.54″ footprint.

7-Hour Runtime & Onboard Recording:
Offers up to 7 hours of continuous operation via an external battery pack, complete with 32GB of internal storage, onboard video/photo recording, and app connectivity.

Specifications

Manufacturer – Nocpix
Model Series – MINI2 H25 (MINI H25 2)
Device Type – Helmet-Mounted Thermal / Multi-Spectral Monocular
Thermal Sensor Resolution – 640×512 Pixels
Pixel Pitch / Refresh Rate – 12µm / 60Hz
Thermal Sensitivity (NETD) – ≤15mK
Image Processing Core – Nocpix 640 with Reality+ (R+) – AI Image Algorithm
Objective Lens – 25mm f/1.0
Magnification / Digital Zoom – 1x Base / 1x – 4x Digital Zoom
Field of View (FOV) – 17.6° x 14.1°
Detection Range – 1,420 Yards
Display Type / Resolution – 0.6 in. AMOLED / 1280×1024 Pixels
Color Palettes – White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
Mounting System – Integrated Dovetail Shoe
Eye Relief / Diopter Adjustment – 25mm / -5 to +5 Diopter
Storage & Recording- 32GB Internal / Video & Image Recording (App Compatible)
Power Supply / Operating Time – USB-C / External Battery Pack – (Up to 7 Hours Max)
Housing Material & Ingress Protection – Aluminum Housing / IP67 Waterproof & Dustproof
Dimensions (L x W x H) – 4.00 in. x 1.72 in. x 2.54 in.
Weight – 8.47 oz.
Operating Temperature – -4°F to 122°F
Warranty – 5 Years
