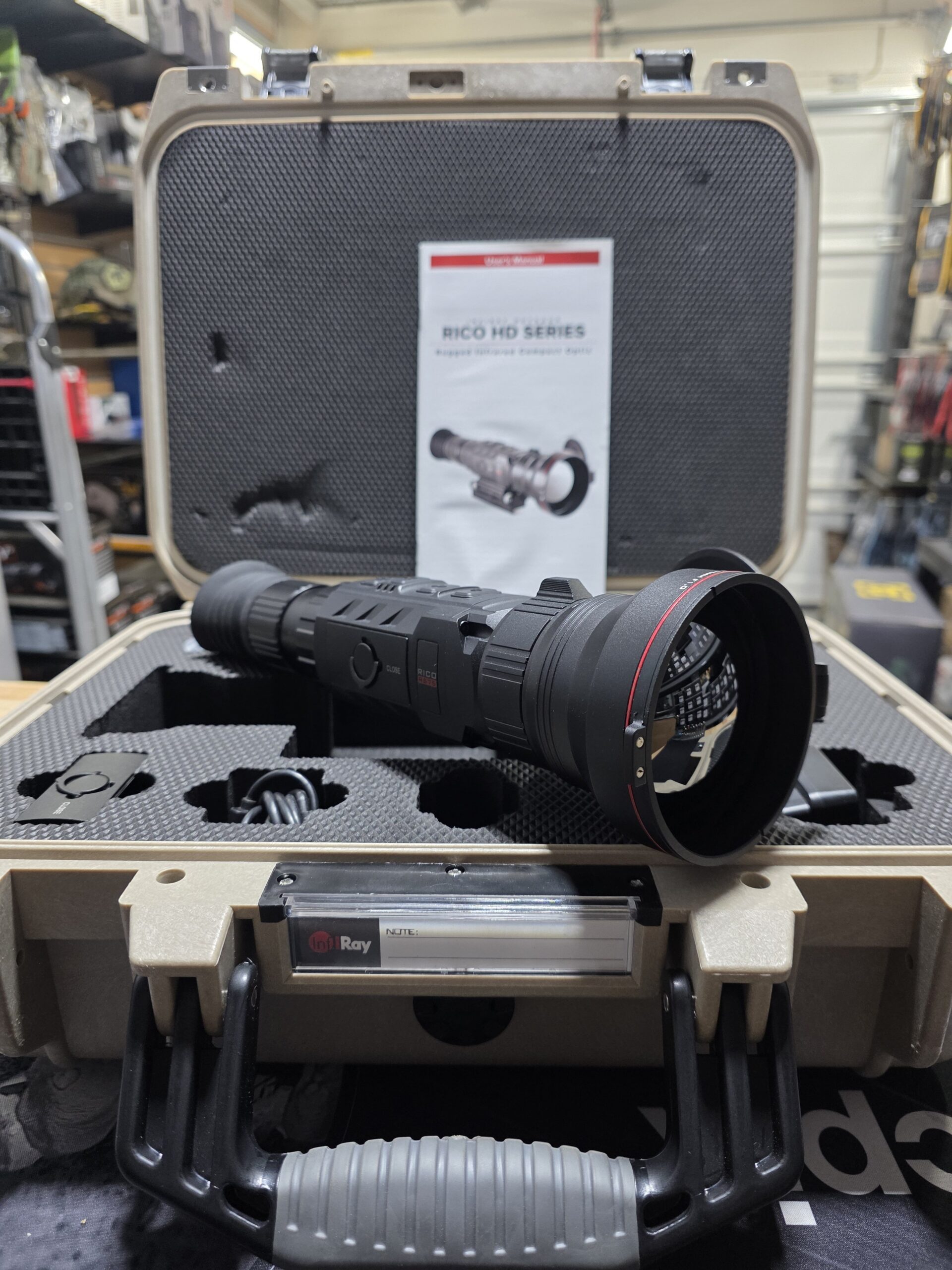

NOTE – Different unit than originally posted on FB – This one has 4 years warranty not 3 – Preowned – Infiray Outdoor Rico RS75 1280 resolution- 2x base magnification. Comes with laser rangefinder

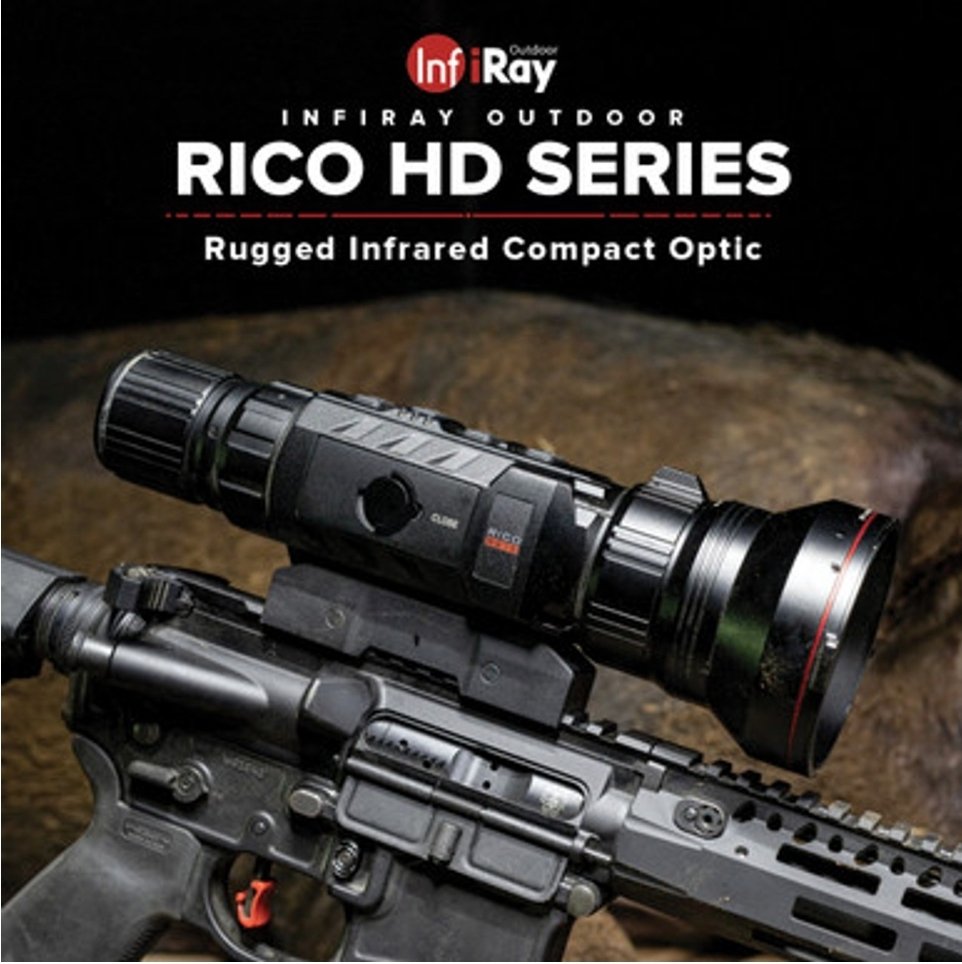

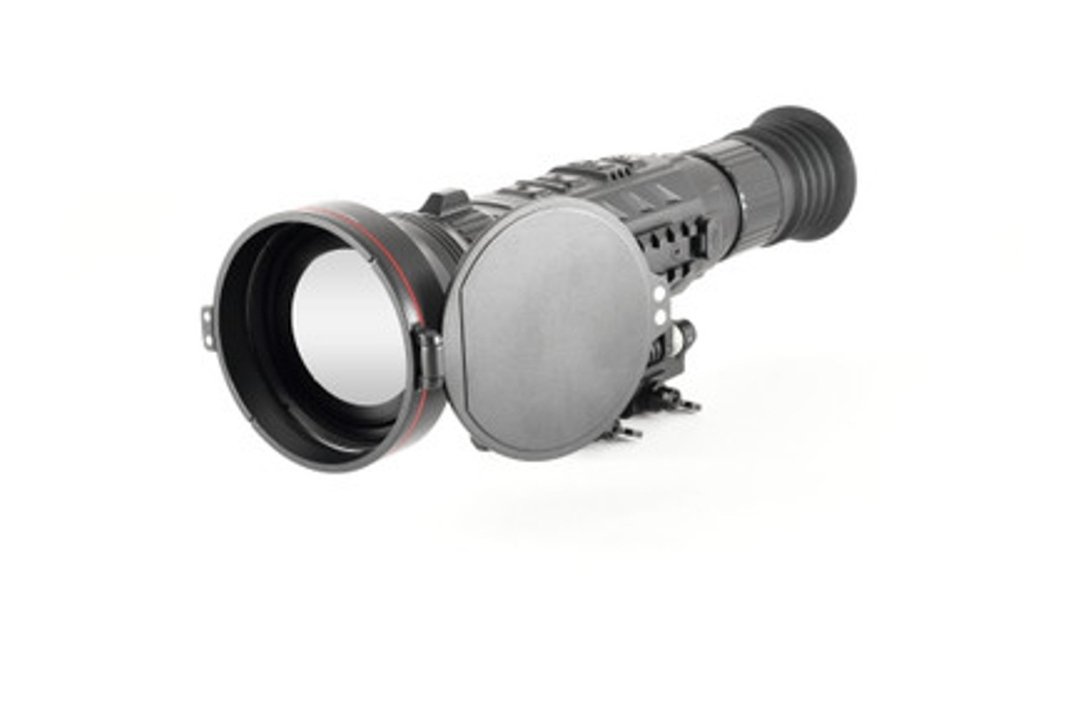

RUGGED INFRARED COMPACT OPTIC HD RS75

The Rugged Infrared Compact Optic(RICO) HD RS75 is the first commercially available 1280×1024 resolution thermal weapon sight ever created. You read that right, the legendary thermal image quality produced by a High Definition(1280×1024) thermal sensor is finally commercially available to night hunters in the form of an advanced weapon sight. The RICO HD RS75 has an incredible 1,310,720 pixels processed by InfiRay’s proprietary MATRIX III algorithm to create an image so clear, it is almost unbelievable.

It’s been more than a decade since the leap from 320×240 resolution to 640×512 resolution thermal sensor technology, but the inexorable advancement to 1280×1024 resolution has been approaching quietly in the background. As night hunters we have always wanted more performance out of our optics, but the problem was we couldn’t do that with existing technology which had reached its limits. Through years of research and development by an engineering team of over 500 devoted to sensor innovation, InfiRay Outdoor has unleashed the capabilities that night hunters have only dreamed of.

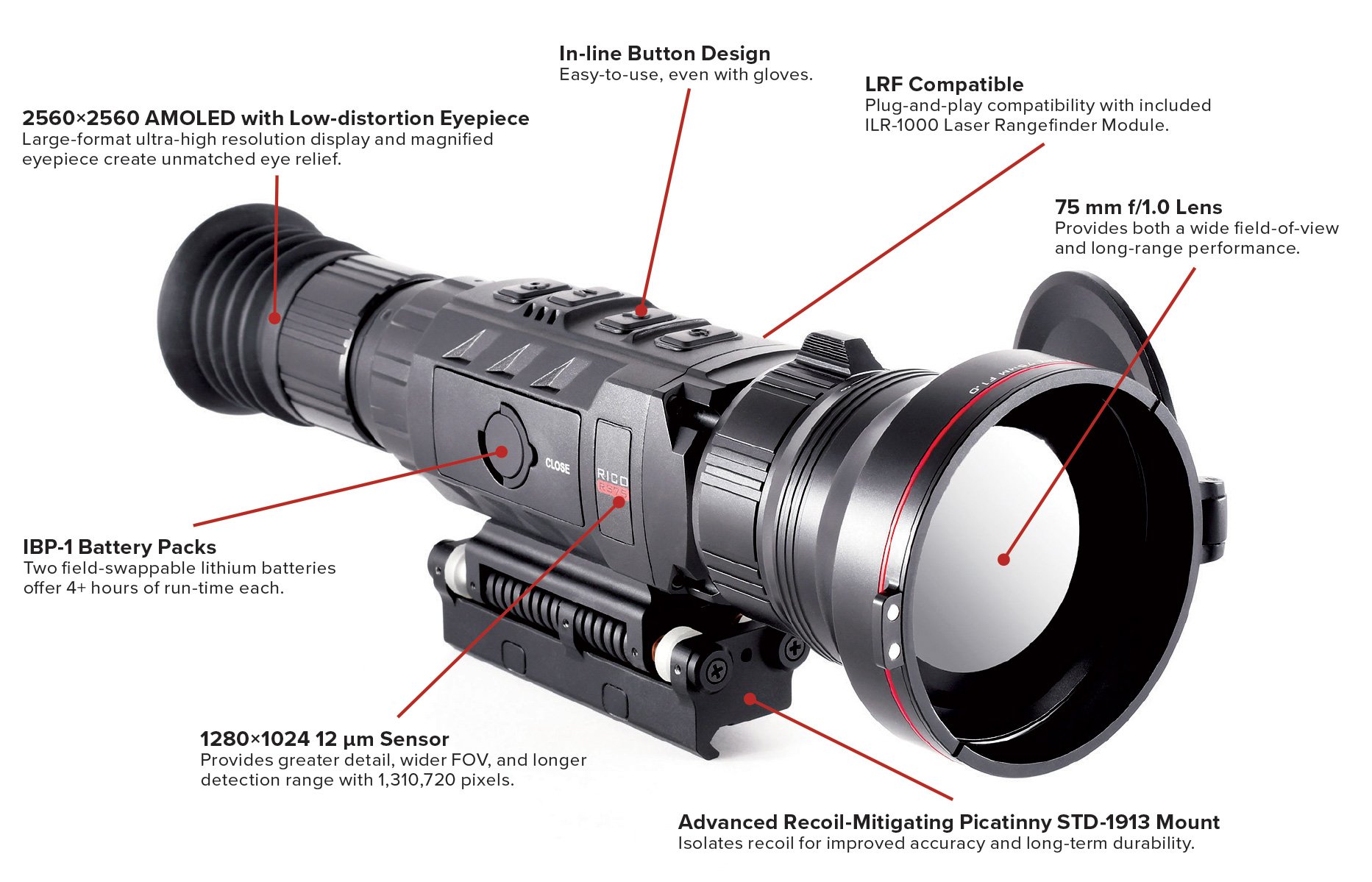

The RS75 maintains many familiar RICO Mk1 characteristics including a 4 button layout, similar software style and menu functions, and high speed germanium objective optics. In addition to the tried and true features of the MK1 line, InfiRay Outdoor added several highly requested features to the RS75 including 128gb of internal storage space, an upgraded 2560×2560 AMOLED display, an enhanced microphone, and a recoil mitigating mount for increased durability.

CRYSTAL CLEAR AUDIO AND VIDEO

The RICO HD offers crystal clear onboard audio recording to compliment captured videos. Increased audio clarity over previous RICO generations allows you to capture a quiet whisper before the shot or the report of a bullet impact hundreds of yards away.

PREMIUM OPTICS AND NEAR-EYE DISPLAY

One of the first things you notice when you look through the RICO HD RS75 is the optical clarity. The eyepiece offers edge to edge image perfection when paired with the 1.03″ 2560×2560 AMOLED microdisplay. The RS75’s orthoscopic eyepiece has also been redesigned with premium components specifically selected to achieve low distortion and edge to edge clarity. This redesigned eyepiece offers a more forgiving eyebox for a more comfortable cheek weld and 60mm of eye relief.

UNLOCKED NEXT GENERATION CAPABILITIES

What does it take to unlock the next level of thermal imaging? Four times the resolution of 640 devices, 1,310,720 pixels, a 12 degree horizontal field of view, and a detection range of 3,600 yards make the RICO HD the ultimate thermal weapon sight for any distance. No longer do night hunters have to sacrifice detection range or field of view, you can have it all in one scope for close range, mid range, or longer range shots.

To get the most out of the first 1280×1024 resolution weapon sight, InfiRay Outdoor built in a suite of best-in-class features including a rail mounted laser rangefinder and compatibility with a custom reticle generator app. Never before has a weapon sight enabled the skilled shooter to be as accurate at night as they are in daylight conditions, until now!

Device Technology:Thermal Imaging
Sensor Frame Rate:30Hz
Sensor Pixel Size:12 micron
Optical Magnification:2X
Digital Magnification:16X
Objective F#:f/1.0
Onboard Recording:Video and Image
Objective Diameter:75mm
Detection Range:3600 Yards
Sensor Resolution:1280×1024
Objective Focal Length:75mm

Tech Specs
Optics
Optical Magnification
2X

Digital Magnification
16X

Objective Lens Material
Germanium

Objective F#
f/1.0

Focusing Mechanism
Manual Focus

Exit Pupil
14mm

Eye Relief
60mm

Eyepiece Focal Length
27mm

Display Type
AMOLED

Diopter Range
-3 – +3

Vertical Angular Field of View
9.4°

Horizontal Angular Field of View
11.7°

Objective Diameter
75mm

Display Resolution
2560×2560

Detection Range
3600 Yards

Objective Focal Length
75mm

Features & Performance
Reticle
7 (2 Dynamic, 5 Static)

Connector Type
USB-C

Color Palettes
White Hot, Black Hot, Red Hot, Color, Highlight

User-Updatable Firmware
Yes

Mobile App
Yes

Storage Capacity
128GB

Connector Output
Power/Data

Picture-in-Picture
Yes

One-Shot Zero
Yes

Stand-by Mode
Yes

Run Time
4+

Power Source
IBP-1 Battery Pack X 2, 4+ Hours Each

Wifi
Yes

Onboard Recording
Video and Image

Video Output
Yes

Startup Time
Under 10 Seconds

External Power Source
USB-C

Compatible With
ILR-1000

Country of Manufacture
China

Image Capture
Yes

Environmental Specifications
Operating Temperature Range
-4°F~122°F

Recoil Rating
1000 g/s² (300 Win./7mm Mag)

Ingress Protection
IP67

Physical
Mounting Interface
Picatinny STD-1913 rail

Housing Material
Aluminum

Length
12.55″

Height
3.34″

Width
3.93″

Weight
44.9 Oz

Sensor Specifications
Device Technology
Thermal Imaging

Sensor Type
InfiRay MICRO II

Non-Uniformity Correction (NUC)
Manual, Automatic, Semi-Automatic

Spectral Response
8-12 Microns

Sensor Frame Rate
30Hz

Sensor Pixel Size
12 micron

Thermal Sensitivity
<25 mk

Sensor Resolution
1280×1024
